Description

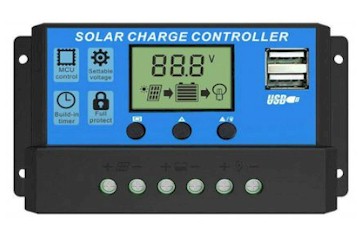

PWM20
Charging Curren: 20A
Discharging Current: 20A
Max Solar input 50V(for 24V battery) 25V(for 12V battery)
Equalization 14.4V(Sealed) 14.2V(Gel) 14.6V(Flood)
Float charge 13.7V(defaul,adjustable)
Discharge stop 10.7V(defaul,adjustable)
Discharge reconnect 12.6V(defaul,adjustable)
USB output 5V/3A
Mounting holespacing 147mm60mm
Dimensions 1337035mm
Packing Size 15080*40mm
Packing Weight 150g
Self-consum Operating temperature -35°C~+60°C
Installation linenumber ?5#AWG(6mm2)
Storage temperature -40°C-70°C
Certificate: ROHS,CE,ISO9001,ISO14001
